Rubber Mounts

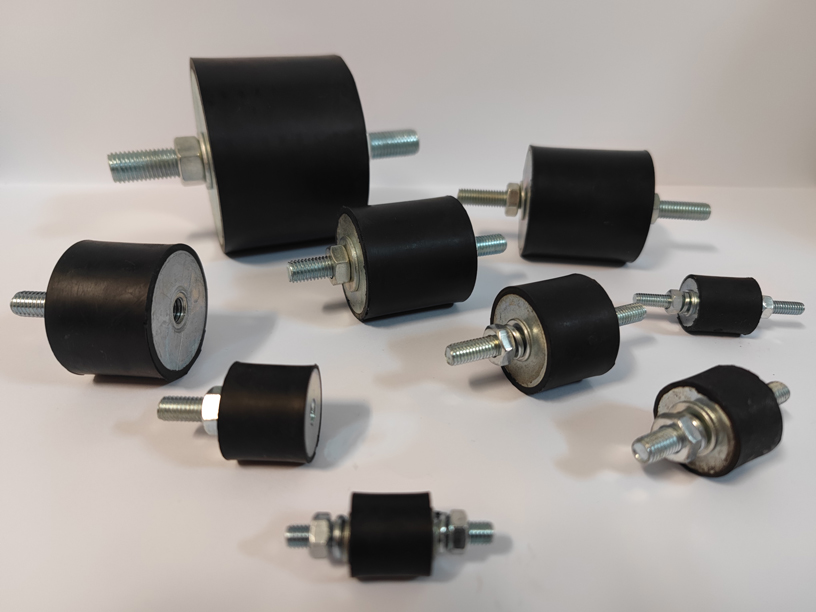

Circular Anti Vibration Rubber Mounts

$7.90 – $82.60

SKU: N/A Category:

Circular Anti Vibration Rubber Mounts

Our anti vibration mounts (also known as anti vibration isolators) can be created from our following range of high quality rubber: natural rubber, SBR rubber, polybutadiene rubber, neoprene rubber, nitrile rubber, EPDM rubber, silicone rubber, and fluoroelastomers. We can mould anti vibration mounts and pads to your desired  specifications, to any hardness range and specification. We also sell standard pre-made anti vibration mounts and pads for your convenience.

Our anti vibration mounts have shock protection and vibration resistant properties, and so are often used in equipment and machinery to decrease vibration and provide shock absorption. This may eliminate the necessity for the frequent replacement or repairs of machine or equipment parts, which can increase the efficiency, safety and lifespan of your equipment or machinery.

At CDJ Rubber Products, we are dedicated to providing our customers with quality products, and so we manufacture our anti vibration products using only premium quality virgin polymers, and never rubber dust, recycled rubber or rubber crumbs. As we also strive to provide our customers with excellent service, we offer highly competitive pricing on our anti vibration mounts (isolators) and pads. We also offer quick delivery times Australia wide, including delivery to the Central Coast, Newcastle, Hunter and Sydney.

Features of our circular anti vibration rubber mounts:

  • Oxidation resistant
  • Weathering Resistant
  • High heat resistance
  • Increases lifespan of machinery
  • Vibration protection
  • Shock protection



Applications of our circular anti vibration rubber mounts:

  • Engines
  • Generators
  • Garage Doors
  • Automotive industry
  • Marine industry
  • Defence industry
  • Energy industry



Sizes:

Code Size Duro Stud Diameter / Length Male or Female Recommended Load Compression Deflection
CDJM176 100MM X 75MM 60 M16 / 48MM M – M 260KG 7.7MM
CDJM177 60MM X 60MM 60 M10 / 38MM M – M 132KG 3MM
CDJM175 50MM X 50MM 60 M10 / 28MM M – M 85KG 3MM
CDJM170 50MM X 50MM 45 M10 / 32MM M – M 45KG 3MM
CDJM178 50MM X 40MM 60 M10 / 28MM M – M 85KG 3MM
CDJM174 50MM X 35MM 60 M10 / 28MM M – F 70KG 2.5MM
CDJM171 40MM X 30MM 60 M8 / 27MM M – M 60KG 2.5MM
CDJM162 40MM X 30MM 40 M8 / 27MM M – M 32KG 2.5MM
CDJM179 30MM X 25MM 60 M8 / 23MM M – F 40KG 2MM
CDJM104 30MM X 20MM 60 M8 / 23MM M – M 40KG 2MM
CDJM172 25MM X 25MM 60 M6 / 23MM M – M 33KG 2MM
CDJM173 20MM X 20MM 60 M6 / 16MM M – M 25KG 2MM



Prices starting from $7.95

Weight N/A
Circular Anti Vibration Rubber Mounts

CDJM164 – 40MM X 30MM – 60 DURO – M8 – 23MM – M-M, CDJM173 – 20MM X 20MM – 60 DURO – M6 – 16MM – M-M, CDJM172 – 25MM X 25MM – 60 DURO – M6 – 23MM – M-M, CDJM104 – 30MM X 20MM – 60 DURO – M8 – 23MM – M-M, CDJM162 – 40MM X 30MM – 40 DURO – M8 – 27MM – M-M, CDJM162 – 40MM X 30MM – 40 DURO – M8 – 27MM – M-M, CDJM171 – 40MM X 30MM – 60 DURO – M8 – 27MM – M-M, CDJM174 – 50MM X 35MM – 60 DURO – M10 – 28MM – M-F, CDJM178 – 50MM X 40MM – 60 DURO – M10 – 28MM – M-M, CDJM170 – 50MM X 50MM – 40 DURO – M10 – 32MM – M-M, CDJM175 – 50MM X 50MM – 60 DURO – M10 – 28MM – M-M, CDJM177 – 60MM X 60MM – 60 DURO – M10 – 38MM – M-M, CDJM176 – 10MM X 75MM – 60 DURO – M16 – 48MM – M-M, CDJM160 – 60MM X 60MM – 60 DURO – M10 – 28MM – M-M
